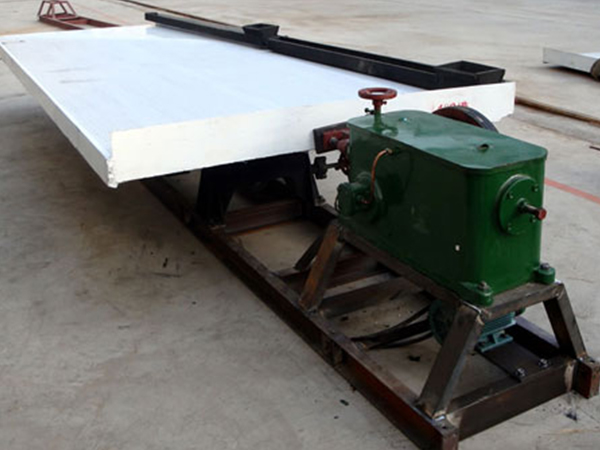

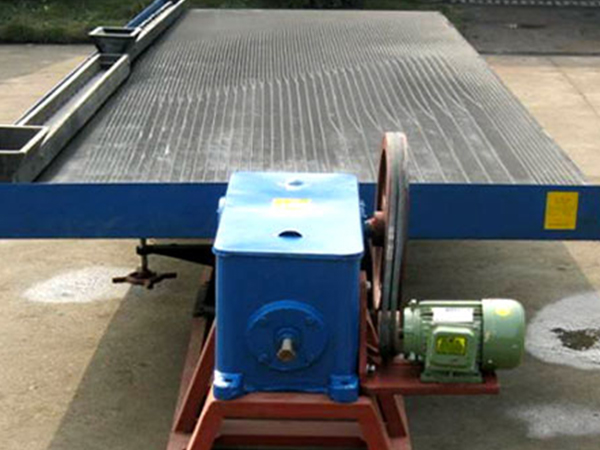

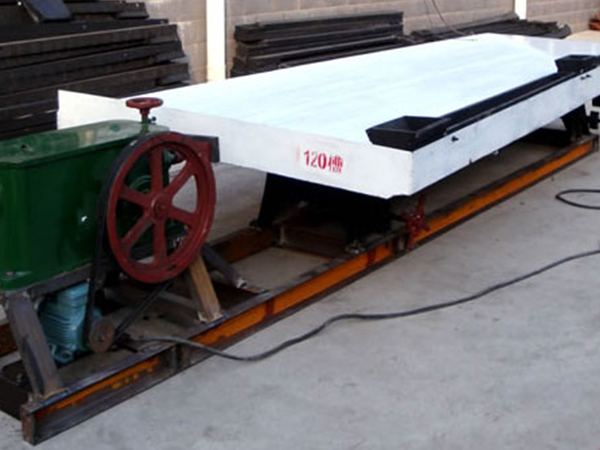

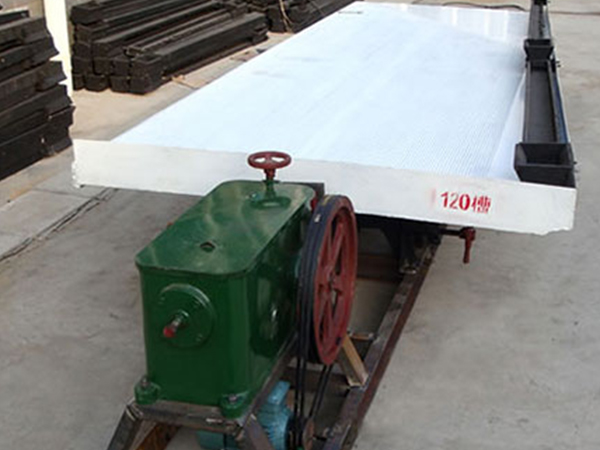

Shaking Table

Shaking Table

Feed Size 0.15-2mm

Capacity 1-60/h

Exported Countries Sudan, United States, Turkey, Laos, United Kingdom, Brazil, United Arab Emirates, Indonesia, Mexico, South Africa, Tanzania, Botswana, Uganda, Cote d'Ivoire, etc.

Applied Materials Tungsten, tin, tantalum, niobium, iron, manganese, chromium, titanium, bismuth, lead, gold, silver, zinc, antimony, coal, heavy metal materials, and other metal ore materials, etc.

Get Quote Get latest Price
Service:

7*24 Online/ Free Customized Design/The Latest Price List/Fast Shipping from China/Full Tech Support/After-sale Service

Introduction

Shaking table is one of the main gravity ore dressing equipment, which is widely used in the beneficiation of tungsten, tin, tantalum, niobium, gold and other rare metals and precious metal ore. It can be used for roughing, selection, scavenging and other different operations, so as to separate coarse sand, fine sand, mud and other different particle size materials. Shaking table can also be used to separate iron, manganese ore and coal. When processing tungsten and tin ore, the effective recycling granularity scope of shaking table is 2-0.22 mm.

Advantages

Simple structure, convenient assembly and disassembly.

High separating efficiency shortens the production time, final concentrate and discarded tailing can be obtained through one time separation;

Wide treatment of material particles, multiple products can be gained at one time according to your needs;

Obvious mineral zoning in the table surface contributes to the convenient adjustment, observation and receive.

Applications

Gold Mining Coal Mining Placer Gold tantalum mud ore, Slag, manganese ore Tungsten, tin

Customer Cases

  • 1 t/h Shaking Table in Sudan

    1 t/h Shaking Table in Sudan

    Materials: : Quartz for gold

    Input size: : 0.5-1mm

    Output Size: : 200 mesh

Technical Data

Name Grit
concentrator
 table
Fine sand
concentrator
 table
Sludge
concentrator
 table
Bed surface
Dimensions
Length
(mm)
4450 4450 4450
Driving
part Width
(mm)
1855 1855 1855
Concentrate
part Width
(mm)
1546 1546 1546
Max.feeding
size(mm)
2 0.5 0.15
Feeding
amount
(t/d)
30-60 10-20 15-25
Feeding
thickness
(%)
25-30 20-25 15-25
Stroke
(mm)
16-22 11-16 8-16
Frequency
(f)
45-48 48-53 50-57
Bed surface
Water quantity
(t/d)
80-150 30-60 10-17
Bed surface
Horizontal
obliquity(°)
2.5-4.5 1.5-3.5 1-2
Bed surface
Portrait
obliquity(%)
1.4 0.92 ----
Table board
corner(°)
32-42 40 42
Concentrating
area(㎡)
7.6 7.6 7.6
Bed surface
Length ratio
2.6 2.6 2.6
Shape of
side-bed
surface
Rectangle Zigzag Triangle
Motor
power(kw)
1.1 1.1 1.1
Transmission
device
Eccentricity Linkage
