Raymond Mill

Raymond Mill

Feed Size ≤30mm

Capacity 1-100/h

Exported Countries Cameroon, Tanzania, Congo (DRC), Nigeria, South Africa, Uganda, Albania, Netherlands, United Kingdom, Australia, Tajikistan, Saudi Arabia, Yemen, Mongolia, South Korea, Vietnam, Indonesia, Jordan, Sri Lanka, Pakistan, Palestine, Mexico, Honduras , Nicaragua, etc.

Applied Materials Ultrafine grinding mill can process the non inflammable and explosive minerals with less than 7 Mohs hardness and below 6% humidity, such as calcite, bentonite, limestone, fly ash, kaolin, bentonite, mica, talc, magnesite, pyrophyllite ore, sepiolite, diatomite, barite, gypsum, alum stone, fluorite, rock phosphate, potassium ore, pumice and other minerals.

Get Quote Get latest Price
Service:

7*24 Online/ Free Customized Design/The Latest Price List/Fast Shipping from China/Full Tech Support/After-sale Service

Introduction

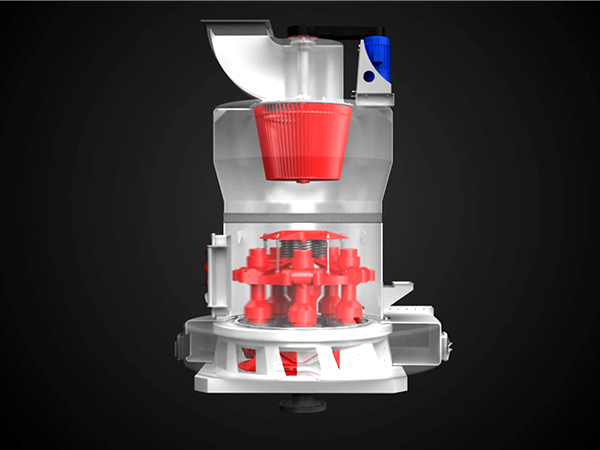

Raymond mill is widely used in high-fine powder processing of more than 280 kinds of non-metallic ore materials with a Mohs hardness of not more than 9.3 and non-flammable and explosive mineral, chemical and construction industries with a humidity of 6% or less.

Advantages

Low production cost, high-performance

Good stability, high reliability

Small footprint, strong systemic

Creative grinding roller and ring

Good product size, through screening rate is 99%

Applications

Coal Mine Non-metallic Ores Ceramics Refractory Materials Water Slag Steel Slag Coal Slag, etc.

Customer Cases

  • 15 t/h Grinding Mill Plant in Yemen

    15 t/h Grinding Mill Plant in Yemen

    Materials: : Calcium Carbonate/Caco3

    Model: : HGM 100

    Input size: : 5-10mm

    Output size: : 400 mesh

Technical Data

Model 4525 4119
Feeding Size(mm) ≤30 ≤25
Output Size(mm) 0.173-0.044 0.173-0.044
Shift Output of Different Material Fineness(t) 16-176 8-78
Rotation Speed of Central Shaft(r/min) 82 105
Ring Diameter(mm) 1770 1400
Roller Diameter(mm) 450 410
Roller Height(mm) 250 190
Main Motor(kw) Y315M-4-132 Y280S-4-75
Fan Motor Y315M-4-132 Y280S-4-75
Analyzer Motor YCT250-4A-18.5 YCT200-4B-7.5

Company and Services

Specialized technical training and instructions

Tracking service, regular inspection equipment

Free technical advice and guidance

The lifelong service and spare parts for customers
